Mirtec 6e Omni | Accurex Solutions

Global leader in inspection technology

Over the past several years, MIRTEC has earned a solid reputation with leading OEM and EMS companies throughout the world for their TECHNOLOGICALLY ADVANCED Inspection Systems. MIRTEC products have been extremely successful in high-volume markets including cell phone and MP3 player manufacturing, as well as low-volume high-mix markets such as medical, automotive, aerospace and defense.

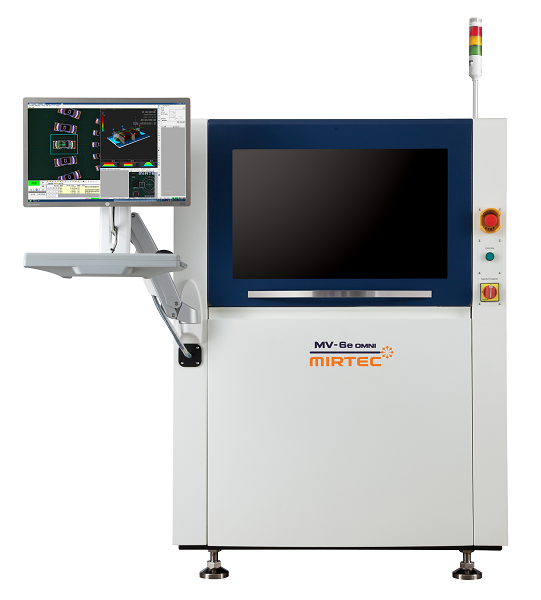

MV-6 Series Inline AOI Machine

Total Quality Solution Provider

MIRTEC

  • Five camera In-line AOI machine
  • Desktop AOI machine
  • Simple Programming and Operation
  • Integrated laser inspection system
  • Unsurpassed defect detection
  • Adapted NG marking system
  • Network based server for SPC and repair
  • In-line machine for MEMS packaging

AOI VI TECHNOLOGY K SERIES | Accurex Solutions

Global leader in inspection technology

K Series and K Series3D are the reference in Automated Optical Inspection (AOI), allowing 2D and 3D inspection with very low false calls rate, for both pre-reflow and post-reflow. They are the most powerful gatekeepers to guarantee high quality level for the assembled PCB.

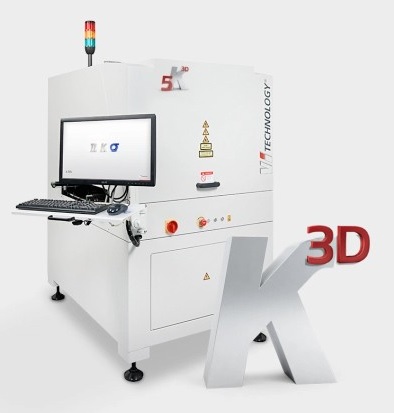

K Series3D

THE NEW REFERENCE FOR AUTOMATED OPTICAL INSPECTION

VI Technology

  • Complete defect coverage
  • Reduce your false calls rate
  • 12 bit – 8 M Pixel CCD Camera
  • Telecentric Lens
  • LED lighting with holographic diffuser
  • High precision linear motors 1 µm repeatability with linear optical encoders
  • X,Y resolution 20 µm, Z resolution 1 µm
  • 25 mm range reconstruction
  • Geometric pattern matching

Global leader in inspection technology

Over the past several years, MIRTEC has earned a solid reputation with leading OEM and EMS companies throughout the world for their TECHNOLOGICALLY ADVANCED Inspection Systems. MIRTEC products have been extremely successful in high-volume markets including cell phone and MP3 player manufacturing, as well as low-volume high-mix markets such as medical, automotive, aerospace and defense.

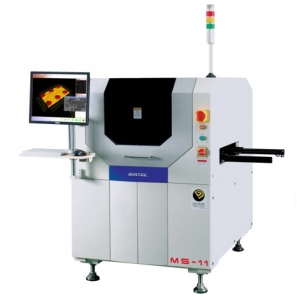

MS-11 SPI 3D Solder Paste Inspection

Total Quality Solution Provider

MIRTEC

  • Transition from SPI to AOI to LED inspection
  • Moiré technology
  • 15Mpx ISIS camera
  • Integrated laser inspection system
  • Unsurpassed defect detection
  • Adapted NG marking system
  • Network based server for SPC and repair
  • In-line machine for MEMS packaging

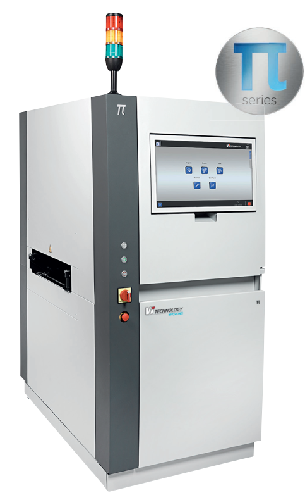

3d solder paste inspection vi tech | accurex solutions

State-of-the-art design

This is precisely what makes the innovative PI Series 3D SPI system an increasingly critical part of a complete metrology solution. It allows you to measure paste volume with unmatched accuracy and unprecedented simplicity. So that you can continually improve your process and tolerance settings – and take advantage of the unambiguous real-time information you need to take your yield to new heights.

PI series 3D SPI

Total Quality Solution Provider

MYCRONIC

  • Perfect solder joints made simple
  • Accurate z-referencing technology
  • Simple auto-programming
  • Clear and simple inspection control
  • Effortless auto-programming
  • Measure paste volume with unmatched accuracy
  • Take control over your print process

X-Ray Inspector

Dage was founded in 1961 and is a market leader in its chosen markets of Semiconductor and PCBA Manufacture. It has an award winning portfolio of Bondtester and X-ray Inspection Systems for destructive and non-destructive mechanical testing and inspection of electronic components.

Dage - Quadra Series

High Resolution Nano-focus X-ray systems

NORDSON DAGE

  • High quality real time imaging
  • Axis Active X-ray Image Stabilisation
  • Oblique views without loss of magnification
  • Maintenance free sealed Transmissive X-ray Tube
  • Geometric Magnification

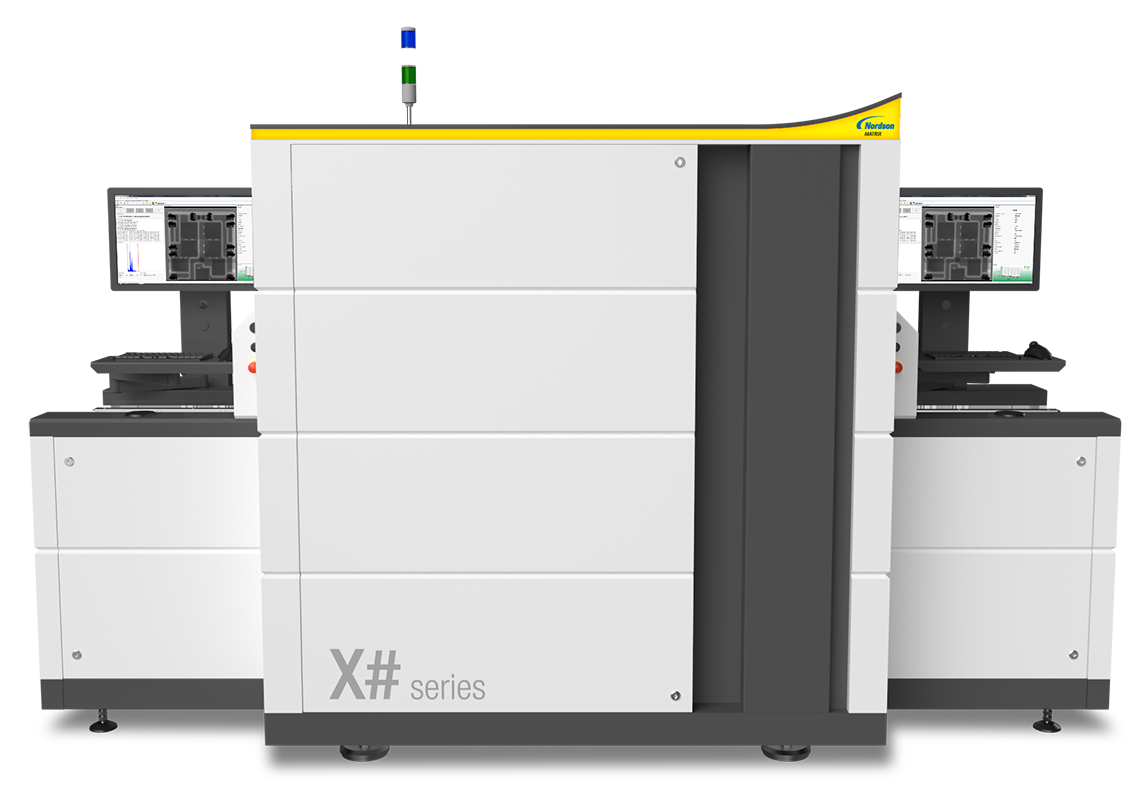

X-Ray Inspector

MatriX AXI inline solutions for electronics feature the industry's fastest speed and highest throughput while MatriX‘ offline solutions not only offer production capacity but the flexibility to use the equipment quickly and easily in a manual mode or quick programming with "Teach & Go".

NORDSON - MatriX Series AXI

High Resolution Nano-focus X-ray systems

NORDSON DAGE - MATRIX

  • High resolution X-ray system with Hexaglide motion concept
  • Maintenance free sealed X-Ray tube and digital detector technology
  • 6-axes programmable, parallel-kinematic motion system for angle shots up to 60°
  • Automatic grey-level and geometrical calibration
  • Easy and flexible handling operator terminal with space mouse navigator & touchpad keyboard
  • Wide range of applications from components, SMT up to NDT samples
  • XT-6A model: with automatic load/unload setup

Bond Tester

Dage was founded in 1961 and is a market leader in its chosen markets of Semiconductor and PCBA Manufacture. It has an award winning portfolio of Bondtester and X-ray Inspection Systems for destructive and non-destructive mechanical testing and inspection of electronic components.

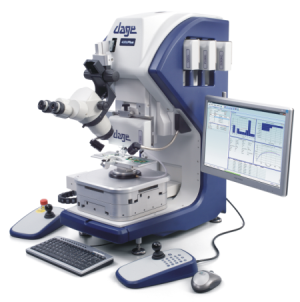

Dage - 4000Plus Bondtester

NORDSON DAGE

  • Highly Versatile
  • Switch Applications in Just Seconds
  • Increased Efficiency
  • Ultimate Step Back Accuracy
  • Correlation
  • Intelligent Software

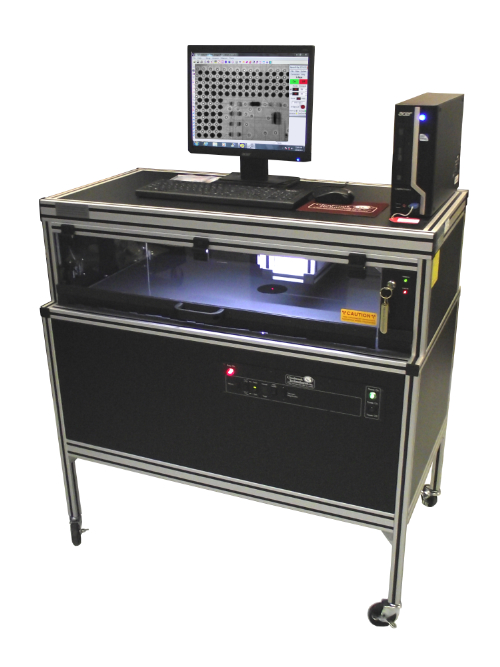

RTX Series

Glenbrook x-ray systems create magnified, real-time x-ray images of the broadest range of subjects; with the highest resolution and lowest radiation levels.

Our patented x-ray imaging technology can record dynamic x-ray images as video, as well as highly resolved static images.

Glenbrook

Glenbrook Technologies

  • MXRA real-time x-ray imaging camera
  • MXRA magnification technology
  • Inspect wide range of materials - plastics, rubber, ceramics, silicones, titanium, steel, bio-materials
  • Rapid, reliable inspection of multi-layer PCB with dense metal BGA
  • BGA, Void measurement software

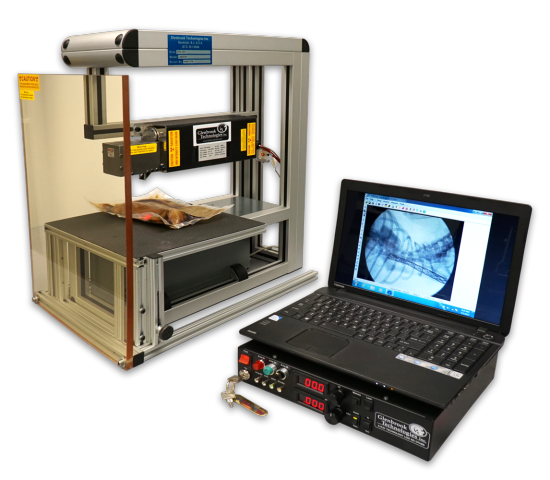

Animal X-Ray

Glenbrook X-Ray fluoroscopic technology at a fraction of the cost of clinical C-arms. X-ray image resolution and magnification that opens new research possibilities. The LabScope features Glenbrook’s patented “Magnification Fluoroscopy” technology now providing the highest resolution, magnified fluoroscopic imaging for small and large animal research.

Animal X-Ray

Glenbrook Technologies

  • Small and Large Animal Imaging with extraordinarily high resolution

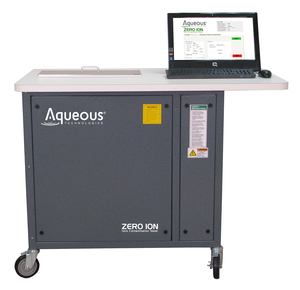

Ionic contamination Tester

Today's Zero Ion is designed to meet the cleanliness testing challenges associated with modern circuit assemblies. The Zero Ion is capable of extracting and quantifying assembly contamination levels per IPC J STD001 TM 2.3.25 and other military specifications.

Ionic contamination Tester

Aqueous Technologies

  • Dynamic Measurement Technology
  • Most sensitive tester available by the US Navy
  • Ambient Temperature Testing
  • Without needing to heat the test solution.

Outstanding performance, consistency and value

Digitaltest has created innovative and often pioneering solutions that integrate CAD, test and production to optimize the entire manufacturing process. Digitaltest also offers extensive service and support options, up to complete outsourcing of your board testing requirements at any of our facilities all over the globe.

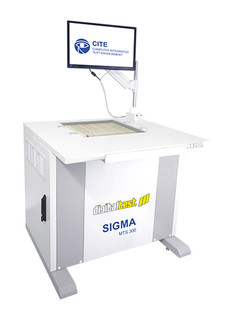

Sigma MTS300 In-Circuit Tester

DIGITALTEST

  • Flexibility, high fault coverage and ease of programming.
  • With up to 1,000 analog measurements per second
  • enough space for rack plus and additional space
  • Short wire connections
  • Non-multiplexed pin architecture
  • Modular design and the variety of test methods

Electronic Board Test System

For more than 35 years Digitaltest has been known worldwide as a leading supplier of innovative test, production and quality control solutions for the electronic industry. They are providing electronic manufacturers with first-class Electronic-Board Test Systems and Electronic Manufacturing Software,

Condor MTS 505 Flying Probe Tester

Latest Technology in Testing Field

DIGITAL TEST

  • Flying probe and bed of nail testers
  • Accurate, Quick, Easy-scalable, economical
  • Fast program development
  • High Fault Coverage
  • Excellent throughput
  • Generation of circuit schematics of PCBs using Digitizer for boards which don't have CAD

Motic® is a trusted source for microscope solutions and has built its reputation as the designer and manufacturer of OEM-branded microscopes on the market for over two decades.

Video Microscope - Motic

Qualifying and Testing Solutions

Motic

VisiConsult, as a specialist for X-ray systems and automation, developed the XRHCount in order to speed up this time consuming process. VisiConsult X-ray Systems & Solutions GmbH is a family owned company from northern Germany and a leading manufacturer of custom tailored X-ray test systems. Mainly based in the field of Non-Destructive Testing (NDT) of all kind of materials, VisiConsult got approached by a well-known PCB manufacturer with the inquiry to develop a system that speeds up the cycle time an accuracy of component counting through the usage of X-ray technology and a completely automated software suite. The outcome was the XRHCount. Here XRH stands for X-ray Handling-System.

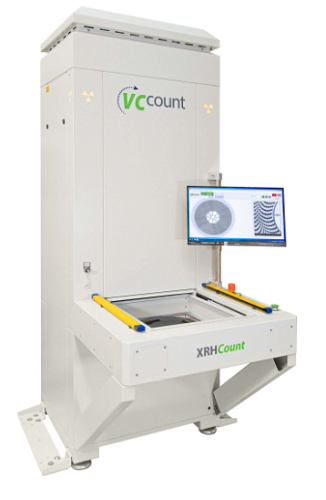

XRHCount – The revolution in SMT counting

Visiconsult

  • Counting of ESD bags with desiccant
  • Automatic barcode recognition
  • Detection of odd shapes
  • Detection of splices
  • 8.5 sec. Cycle time
  • PCB inspection
  • Statistic Suite
  • The Most Reliable. Proven handler utilizing overhead gantry delivers consistent high-speed performance Simple, efficient and accurate pick-and-place with high speed on-the-fly alignment. Easy to operate and maintain, designed to maximize uptime

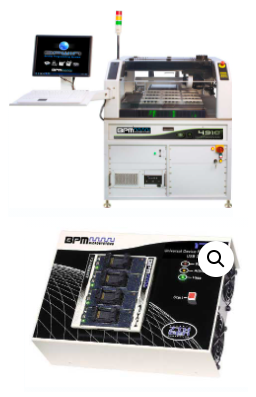

    Universal Programmer

    BPMicro

  • Highest real-world throughput delivering results you can count on
  • Fast Efficient Setups powered by WhisperTeach™ improve productivity
  • Unmatched programming speeds with 9th Gen universal site technology
  • Increase Throughput and Reduce Materials Defects

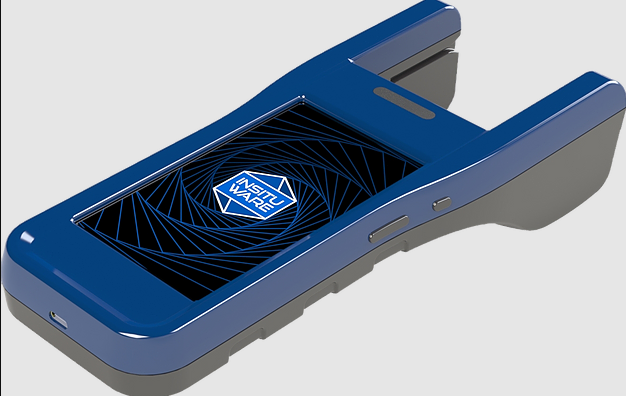

    Vision Mark-1

    INSITUWARE

  • Quality Standards: Measures material properties related to J-STD-004 standards
  • Track Material Changes: Prevent Issues and defects
  • Rapid Material Measurements: Quickly diagnose materials to drive toward zero defects
  • Futureproof Design: Interchangeable 'Insight' modules and disposable probes provide upgradeability in one device
  • Use Anywhere: Hand-held design for mobility and easy access for any area
  • Secure Data: Cloud-based technology instantly stores all data and measurements safely in the Insitucloud
  • A reliable partner in your progress
