Electronic Assembly

Screen and jet printers, pick and place, reflow, wave and selective soldering — the line from bare board to populated assembly.

20 product lines

Loader & Unloader and Conveyors

ManufacturerYUNI

SMEMA Compatible
Micro-computer based
Compatible to all standard PCB Machines
LCD Monitor for user friendly operation

Screen Printer

ManufacturerE by DEK

Premium software & Offline programming
Modular and retrofittable
Variable, semi-automatic stencil mounting
Programmable understencil cleaning
Short cycle times
Process control/monitoring

Jet Printer

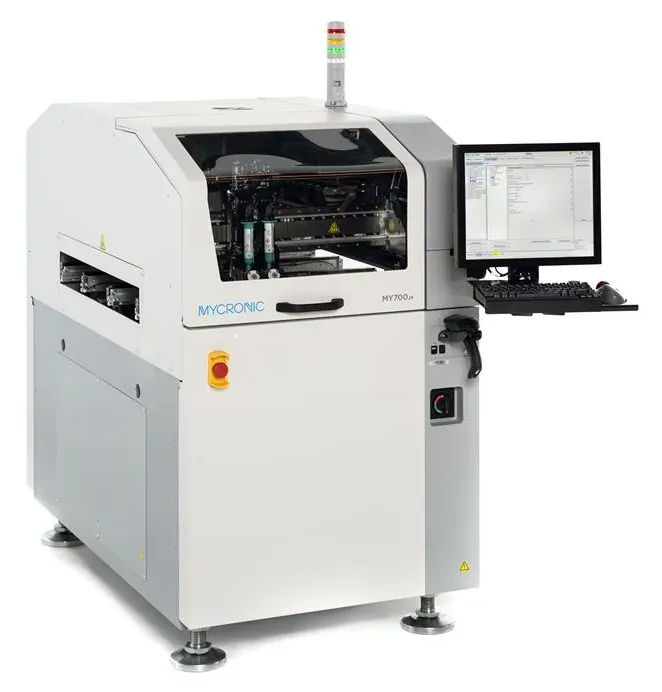

ManufacturerJet Printer - My700

Dual heads for productivity
Dual lanes for smart board handling and buffering
High-speed, high-accuracy dispensing
Solder paste and a wide range assembly fluids
Board revisions on-the-fly and changeovers in no time

Pick and Place

ManufacturerplaceALL®520 machines

100 Slots for 8 or 12 mm single tape FEEDER
Max. 200 Positions for 8 mm tapes
Max. 1 assembling head
Max. 2 dispensing heads
Optional dividable machine frame
Max. PCB size: 520 x 430
Platform 1820 x 1425 x 1570 mm with FEEDER
Standalone or inline
More capabilities in less factory space
More process steps with less equipment
Handle a wider range of products and components
Less manual operation
Achieve higher real speed and utilization
High-Accuracy-Non-stop Recognition by Flying Vision System
High Repeatability & Stability-Magnetic levitation linear motor in X and Y-axis
Bottom Vision Alignment system for big components / IC.
Fiducial recognition and coordinate correction.
Conveyor system with SMEMA interface and automatic-width-control.
Smart Nozzle System provides automatic nozzle checking and replacing.
Strong and rigid mechanical design.
Self-developed software simplifies production.

Reflow oven

ManufacturerSMT Reflow Soldering System RF300 - Table top with Stand

Superior to batch and other ovens
Heating zone is programmable through the controller
Stores up to 100 profiles.
Real-time temperature profiler port
Conveyor speed, heating elements hot air flow, and cooling fans are also Programmable
SPC fault monitoring & reporting
Pb Free process is possible
Temperature can go up to 300C
PLC controlled
Hot Air Reflow - 8 / 10 Zones
High Heat Efficiency
Every Minute Every Second Profiling - build in KIC 24/7
Zero Defect Thermal Process
Intelligent Diagnosis System
Forced Convection
Quattro-Peak Technology
Power nozzle system for optimal heat transfer
Multistage condensate filter at cooling zone
Suitable for temper and curing processes

Wave soldering

ManufacturerEPS WORLDWIDE - WSM 180/300 Single & Dual Wave Soldering Machines

Automatic wave solder system
Best value through cutting-edge technology
Ready-to-go fluxing, preheating and wave modules
Quick ROI (Return on Investment)
Exceptional accuracy and repeatability
Lead or Lead-Free solder compatibility
Easy to use
Low maintenance
PLC / PC controlled
Magnetic Hydro Dynamic Solder Pump
Pb Free Compatible
Pre-heaters forced air convection
Spray / Ultrasonic Fluxer
Quick Change Type Finger

Selective Soldering

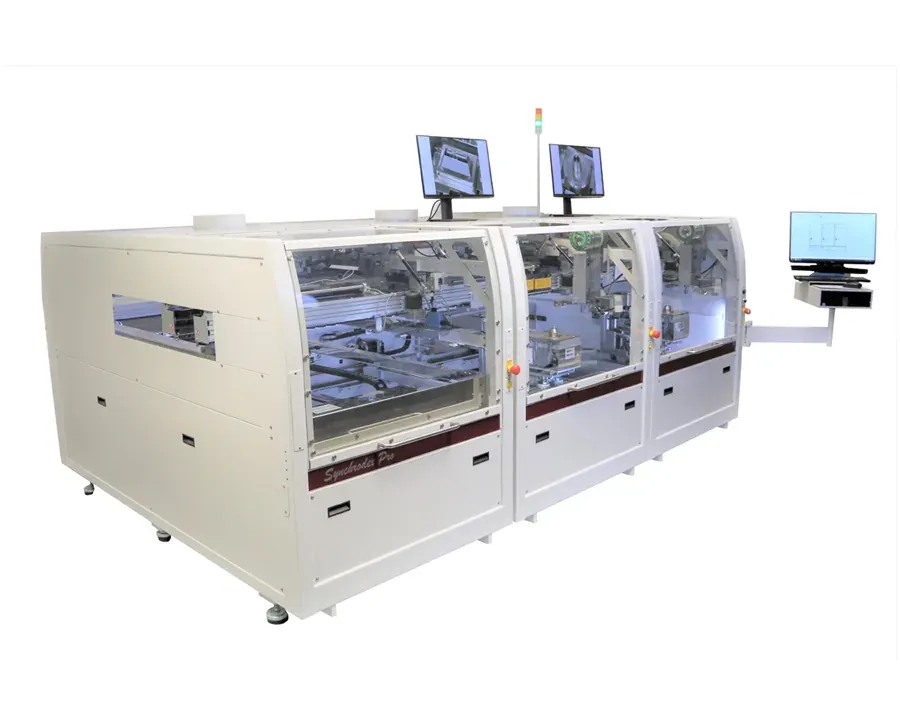

ManufacturerSelective Soldering

In-line or stand alone operation
Modular upgrade ability
LDual quick change over bath
In-line Preheater, In-line Fluxer
Lead Free Compatible
SMEMA interface

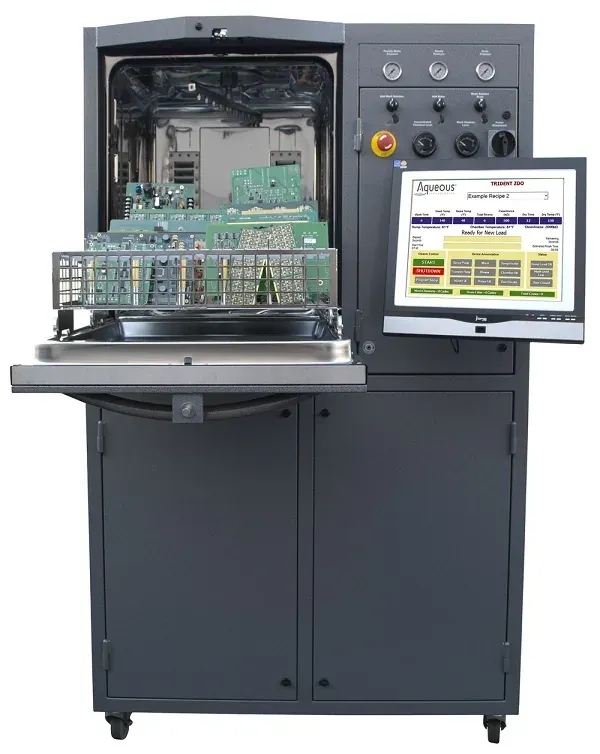

PCB Cleaning

ManufacturerPCB Cleaning

Focus Wash cleaning technology
In-built convection and radiant technology drying system
Real-time predictive cleanliness capability
SPC data logging
Automatic De-fluxing system
Stencil cleaning system
Removal of fluxes - rosin, water soluble, no-clean
Removal of eutectic and lead free residues

Stencil Cleaner

ManufacturerStencil Cleaner

Removes all solder pastes and uncured SMT adhesives
Wash solution is filtered and recirculated (closed-loop) with built-in solder paste trap and filtration system
Rinse water is filtered and re-deionized and recirculated (closed-loop)

Vapor degreaser

ManufacturerVapor degreaser

Ruggedness
Simple installation
High performance
Small batch applications
Optical lens cleaning
Electronic devices
Rework areas

Vapor Phase Soldering System

ManufacturerVapor Phase Soldering System

Void-free solder joints with highest quality
Inert atmosphere during the whole reflow and vacuum process
Wide variety of adjustable solder profiles
Low medium consumption due to 2-chamber design and medium recovery
Temperature recording and profiling with 4 integrated channels
Permanent data collection
Medium level check and automatic medium filtering
Integrated cooling fan
Automatic monitoring of vacuum process
Maintenance-free transport system (patented)

Robotic Soldering

2 options

ManufacturerRobotic Soldering J-CAT LYRA

Easy setting of the soldering conditions
Advanced Temperature Setting Control
Approach Function
Iron unit by electric ARC-5000. The iron unit angle can be changed to any angle
APN-05, Ultra Small N2 Gas Generator
Supports dual iron feeder option

Robotic Soldering L-CAT-Neo 4430 — Robotic Soldering

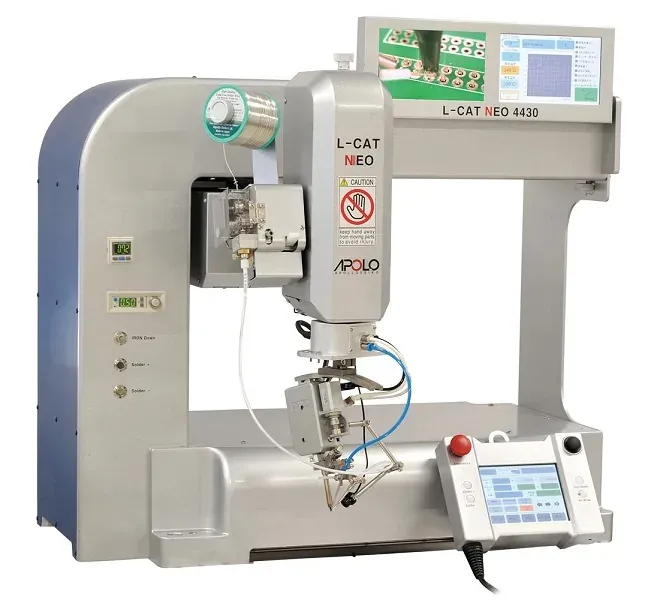

ManufacturerRobotic Soldering L-CAT-Neo 4430

Designed for In-line and Bench Top use
4 axis gantry system for inline use
Non-contact laser soldering unit
Twin slide shuttle for continuous operation
Dual soldering heads for higher throughput
In-built solder fume extraction unit

Prototype PCB Printer

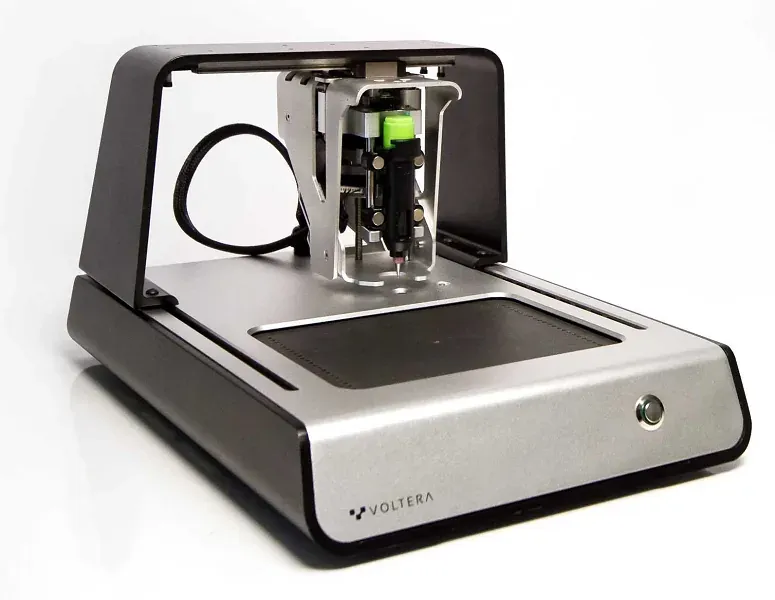

ManufacturerV-One PCB printer

Assemble your boards in half the time.
Skip the soldering iron
Forget the stencil.
A built in heated platform (Reflow)
Design with two layers and easily make connections without compromises.

Solder Recovery System

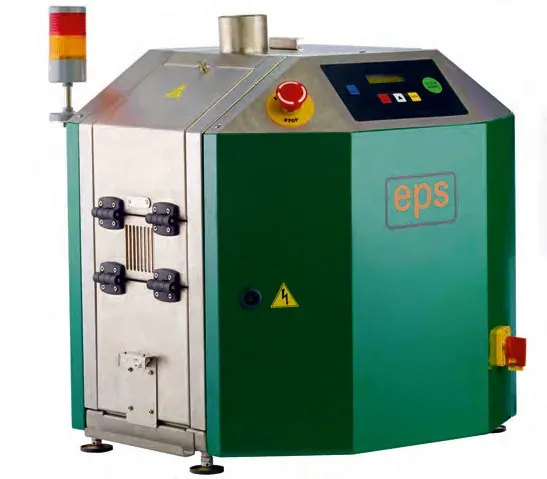

ManufacturerEPS SRS 500

n Significantly reduces your Soldering Costs. Can be used for both Lead and Lead Free Solder.
Useful for Dross from 1 Kg to 5 Kgs.
Totally Automatic Process.
Can be used if you have multiple Wave Soldering Machines.
No Need of Dross-Reducing powders or wave oil in your process.
Increases the effectiveness of wave soldering machine by reducing shorts.
Cycle time only 50-70 Minutes.
Can be used for Hot Dross as well as Cold Dross.
Can recover 60-85% solder from dross, which reduces consumption of Solder.
Reduces De-drossing time by 75%.
Patented Technology.

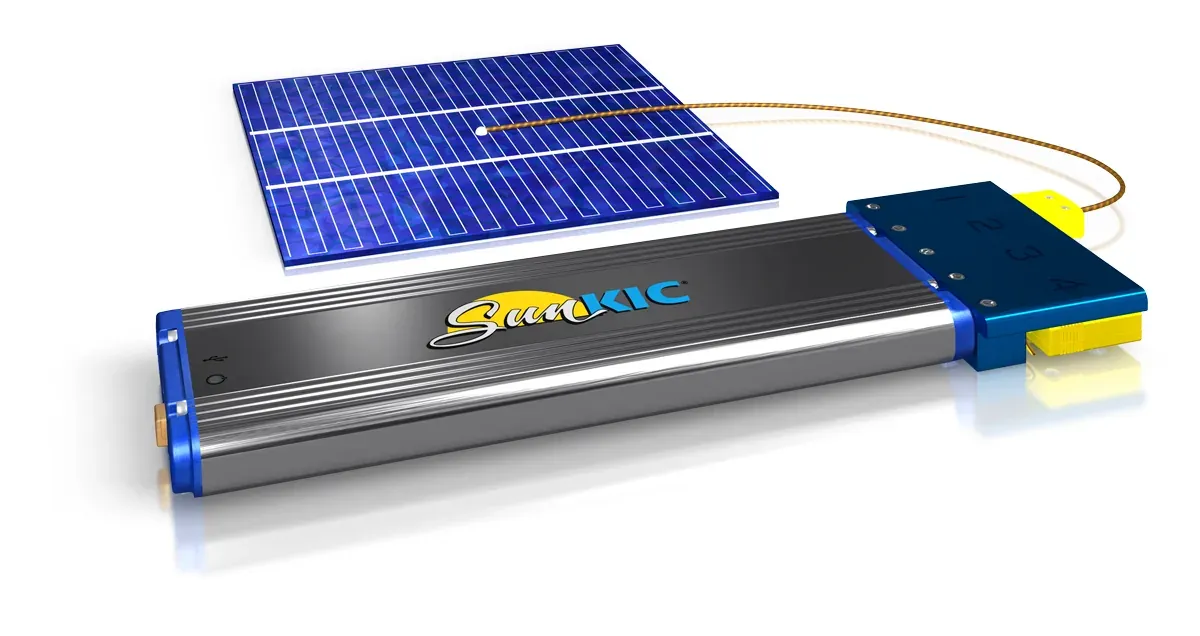

Thermal Profiler

ManufacturerThermal Profiler

Compact — Accurate
Ease of Use Graphical Interface

Conformal coating

ManufacturerMYC50

Fast and stable operation
Automated spray pattern changeovers
Flexible multi-axis control for complex processes
Powerful process controls for enhanced quality
Barcode-defined program selection

Under fill, Edge Bonding & Corner Fill Dispensing System

2 options

ManufacturerUnder fill, Edge Bonding and Corner Fill Dispensing System

Assemble your boards in half the time.
Skip the soldering iron
Forget the stencil.
A built in heated platform (Reflow)
Design with two layers and easily make connections without compromises.

Potting Solutions — Under fill, Edge Bonding & Corner Fill Dispensing System

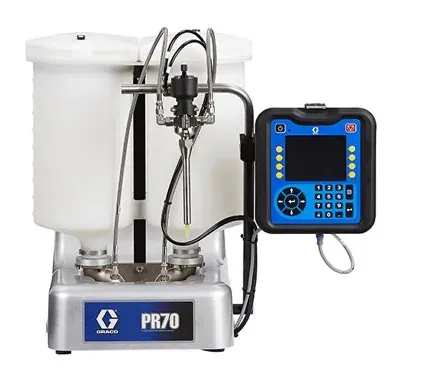

ManufacturerPotting Solutions

2K MMD from 1:1 to 24:1
Shot Size from 2 cc - 70 cc
Shot and ratio accuracy of 1%
Configurable system for Ratios, Materials or Operating conditions
Handle Low to High viscosity
Handles Epoxy, PU, Silicones etc.
Auto Refill / Heating / Recircualtion options available
SS Tank / Agitator Option available
Accurate Small Shot capability from 0.005 - 5 cc

Router

ManufacturerGAM330 MODEL

Equipped with high-speed CCD vision alignment system in all series of products to enhance the precision in cutting and efficiency in operation.
Use high-speed spindle with small cutting stress to precisely cut PCB of any shape.
Provide dual worktables for placing and cutting PCB in parallel to enhance the efficiency of operation.
Patented dust collector with low noise and high efficiency. Easy to clean and maintain.
Windows OS and window-based interface panel. Safe, stable, easy to learn and operate.

Laser Marking

ManufacturerInline Laser Marking

Fast Marking Speed.
High Precision Marking.
Compatible with Photoshop, CORELDRAW, AutoCAD and other CAD software.
Low Energy Consumption.
Flexible Structure.
High-quality laser beam, small focusing spots and well-distributed power.
High-pixel CCD camera makes automatic positioning, identification and feedback reporting come true.

Auto Screw Lock

ManufacturerSC-560 Auto Screw

With intelligent detection function, it can detect leaked lock, floating lock, sliding teeth, etc.
Strong flexibility, the standard universal fixture is suitable for screw locks of a variety of models
Strong versatility, can adapt to M1.0～M5 screw locks
Compact and easy to put into the production line
The side wall is close to the lock
