Inspection & Testing

AOI, X-ray and 3D solder-paste inspection, flying probe, in-circuit test and microscopy — proving the board before it ships.

13 product lines

Automatic Optical Inspection

2 options

ManufacturerMV-6 Series Inline AOI Machine

Five camera In-line AOI machine
Desktop AOI machine
Simple Programming and Operation
Integrated laser inspection system
Unsurpassed defect detection
Adapted NG marking system
Network based server for SPC and repair
In-line machine for MEMS packaging

K Series3D — Automatic Optical Inspection

ManufacturerK Series3D

Complete defect coverage
Reduce your false calls rate
12 bit – 8 M Pixel CCD Camera
Telecentric Lens
LED lighting with holographic diffuser
High precision linear motors 1 µm repeatability with linear optical encoders
X,Y resolution 20 µm, Z resolution 1 µm
25 mm range reconstruction
Geometric pattern matching

3D Solder Paste Inspection

2 options

ManufacturerMS-11 SPI 3D Solder Paste Inspection

Transition from SPI to AOI to LED inspection
Moiré technology
15Mpx ISIS camera
Integrated laser inspection system
Unsurpassed defect detection
Adapted NG marking system
Network based server for SPC and repair
In-line machine for MEMS packaging

PI series 3D SPI — 3D Solder Paste Inspection

ManufacturerPI series 3D SPI

Perfect solder joints made simple
Accurate z-referencing technology
Simple auto-programming
Clear and simple inspection control
Effortless auto-programming
Measure paste volume with unmatched accuracy
Take control over your print process

X-Ray Inspection - DAGE

ManufacturerDage - Quadra Series

High quality real time imaging
Axis Active X-ray Image Stabilisation
Oblique views without loss of magnification
Maintenance free sealed Transmissive X-ray Tube
Geometric Magnification

X-Ray Inspection-NORDSON Matrix X Series

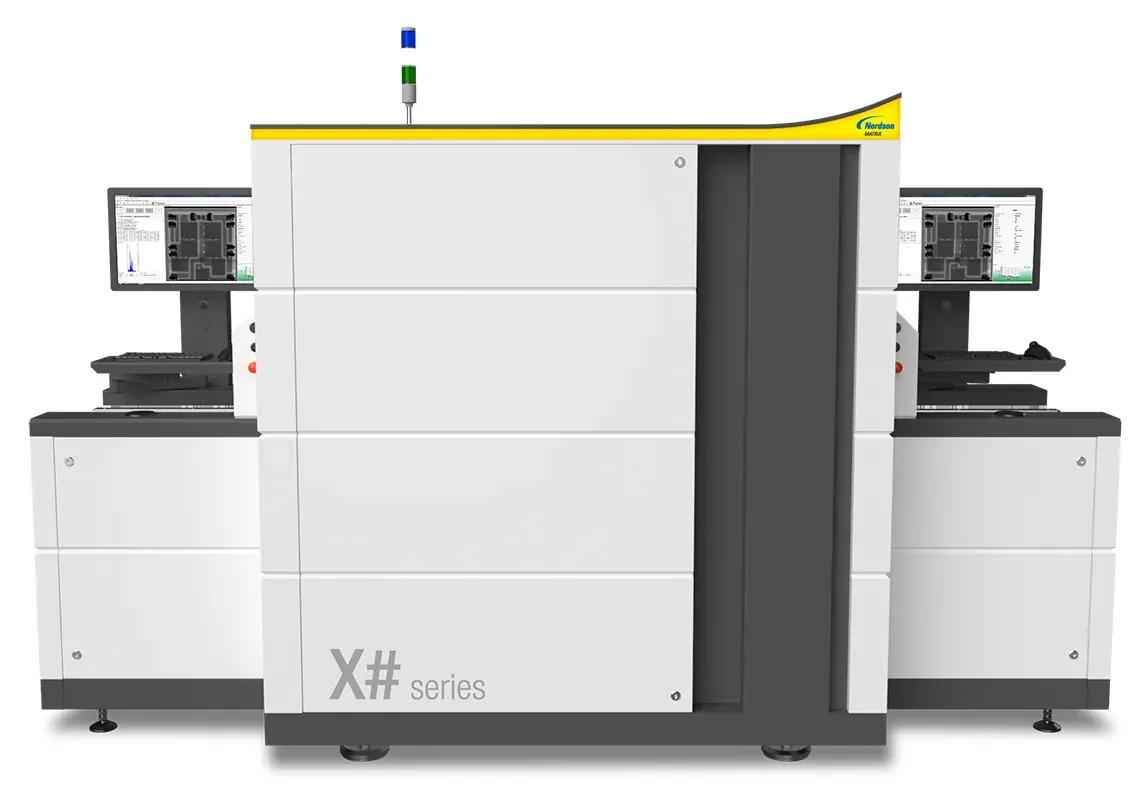

ManufacturerNORDSON - MatriX Series AXI

High resolution X-ray system with Hexaglide motion concept
Maintenance free sealed X-Ray tube and digital detector technology
6-axes programmable, parallel-kinematic motion system for angle shots up to 60°
Automatic grey-level and geometrical calibration
Easy and flexible handling operator terminal with space mouse navigator & touchpad keyboard
Wide range of applications from components, SMT up to NDT samples
XT-6A model: with automatic load/unload setup

Bond Tester

ManufacturerDage - 4000Plus Bondtester

Highly Versatile
Switch Applications in Just Seconds
Increased Efficiency
Ultimate Step Back Accuracy
Correlation
Intelligent Software

X-Ray Inspection - Glenbrook Tech

2 options

ManufacturerGlenbrook

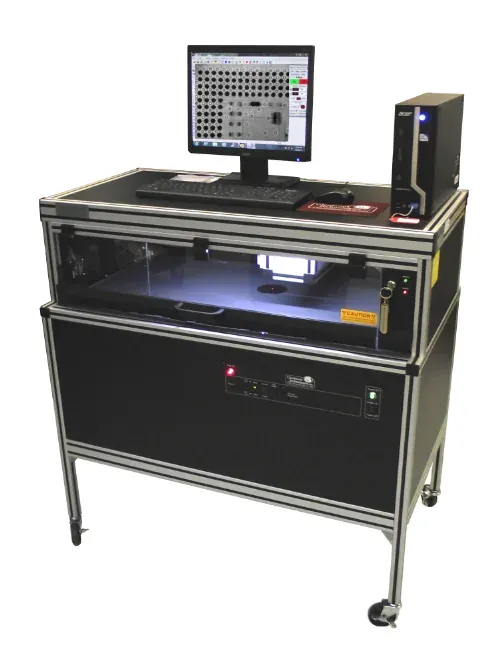

MXRA real-time x-ray imaging camera
MXRA magnification technology
Inspect wide range of materials - plastics, rubber, ceramics, silicones, titanium, steel, bio-materials
Rapid, reliable inspection of multi-layer PCB with dense metal BGA
BGA, Void measurement software

Animal X-Ray — X-Ray Inspection - Glenbrook Tech

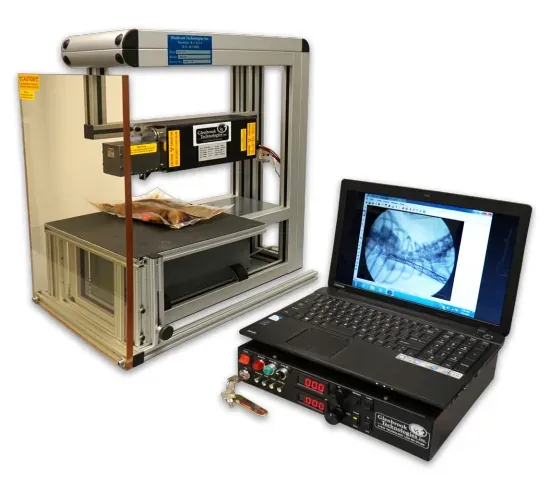

ManufacturerAnimal X-Ray

Small and Large Animal Imaging with extraordinarily high resolution

Ionic Contamination Tester

ManufacturerIonic contamination Tester

Dynamic Measurement Technology
Most sensitive tester available by the US Navy
Ambient Temperature Testing
Without needing to heat the test solution.

Incircuit Test

ManufacturerSigma MTS300 In-Circuit Tester

Flexibility, high fault coverage and ease of programming.
With up to 1,000 analog measurements per second
enough space for rack plus and additional space
Short wire connections
Non-multiplexed pin architecture
Modular design and the variety of test methods

Flying Probe Tester

ManufacturerCondor MTS 505 Flying Probe Tester

Flying probe and bed of nail testers
Accurate, Quick, Easy-scalable, economical
Fast program development
High Fault Coverage
Excellent throughput
Generation of circuit schematics of PCBs using Digitizer for boards which don't have CAD

Video Microscope

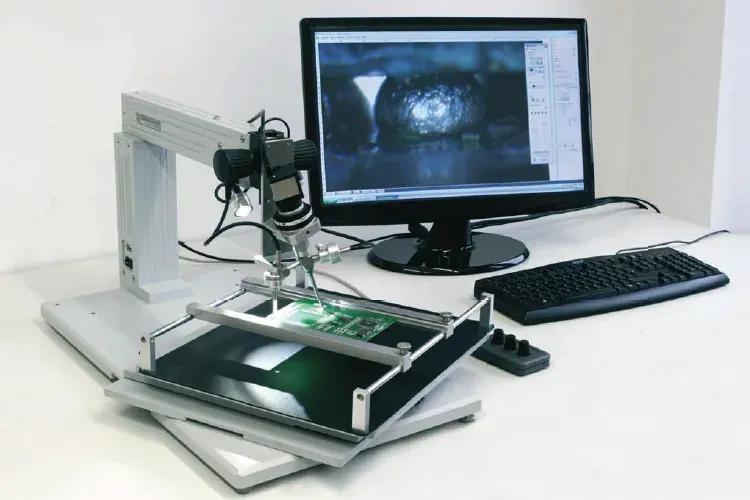

ManufacturerVideo Microscope - Motic

X-Ray Component Counter

ManufacturerXRHCount – The revolution in SMT counting

Counting of ESD bags with desiccant
Automatic barcode recognition
Detection of odd shapes
Detection of splices
8.5 sec. Cycle time
PCB inspection
Statistic Suite

Programming Systems from BPM Microsystems

ManufacturerUniversal Programmer

Highest real-world throughput delivering results you can count on
Fast Efficient Setups powered by WhisperTeach™ improve productivity
Unmatched programming speeds with 9th Gen universal site technology

Solder Paste Quality Inspection

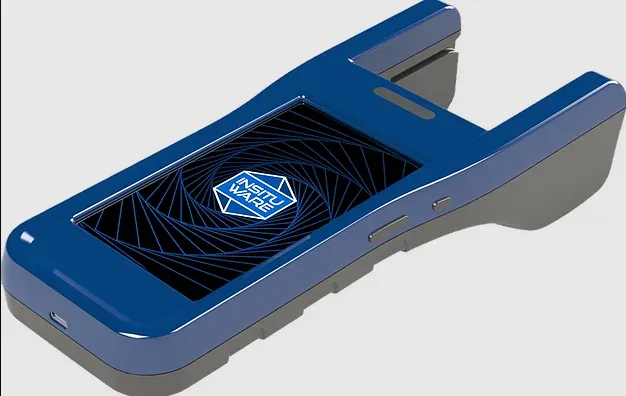

ManufacturerVision Mark-1

Quality Standards: Measures material properties related to J-STD-004 standards
Track Material Changes: Prevent Issues and defects
Rapid Material Measurements: Quickly diagnose materials to drive toward zero defects
Futureproof Design: Interchangeable 'Insight' modules and disposable probes provide upgradeability in one device
Use Anywhere: Hand-held design for mobility and easy access for any area
Secure Data: Cloud-based technology instantly stores all data and measurements safely in the Insitucloud

Other categoriesAll products

Non-Destructive Testing

3 lines Mechanical

Mechanical

3 lines

Not sure which machine fits the process?

Specification is the part that decides whether equipment meets its numbers. Tell us the process and the constraint.

Talk to an engineer
